In the automotive aftermarket, oil leakage from the timing chain cover of the Volkswagen EA888 Gen3 (1.8T/2.0T) engine and a "tapping" noise from its front end are common faults received by service shops.

Many car owners often replace the sealing gasket to fix oil leaks and replace the solenoid valve due to fault codes. However, after driving for a while, the problems may reoccur. The root cause is the "domino-effect" chain of failures triggered by the aging structural materials of the original parts. Replacing a single component cannot break the fault chain.

The Front-End Failure Chain of the EA888 Gen3 Timing System

1. Timing chain cover: culprit of leaks

The original plastic timing chain cover is highly prone to high-temperature creep deformation after prolonged exposure to harsh conditions of high temperature and high pressure in the engine compartment.

Symptoms: Significant oil leakage and sludge accumulation are observed around the cover body, in the screw holes, and on the outer ring of the solenoid valve.

Chain reaction: This not only leads to the leakage of oil vapor and abnormal oil consumption, but also causes severe contamination around the oil circuit, accelerating the aging of surrounding rubber hoses and electrical wire harnesses.

2. Camshaft Bridge: source of abnormal noise and wear

The deterioration of the operation conditions of the timing system and the degradation of the engine oil performance (due to increased impurities) gradually lead to abnormal wear on the thrust surface of the Camshaft Bridge. Additionally, the insufficient wear resistance margin of the original aluminum bridge further contributes to this issue.

Symptoms: The most common complaints from car owners include a noticeable "rattling" mechanical noise from the engine compartment during cold starts, slight body vibration at idle, and a significant increase in mechanical resistance.

Chain reaction: At this point, if you push or move the core of the camshaft solenoid valve laterally, a significant gap will appear. This indicates that the camshaft has developed abnormal axial and radial play.

3. Domino effect: VVT solenoid is the next victim

When wear of the Camshaft Bridge increases camshaft play, the resulting abnormal vibration of the camshaft at high speeds can directly impact and interfere with the core of the VVT (variable valve timing) solenoid valve.

4. System collapse: timing control failure

Mechanical impact and interference caused by camshaft play, coupled with long-term erosion from high-temperature oil contaminants, ultimately lead to malfunction of the VVT solenoid / OCV valve (variable valve timing control valve) system.

Symptoms: The engine malfunction indicator on the dashboard lights up immediately, and the system logs fault codes related to timing. During daily use, the vehicle exhibits delayed ignition, difficulty in cold starting, and severe idle vibration.

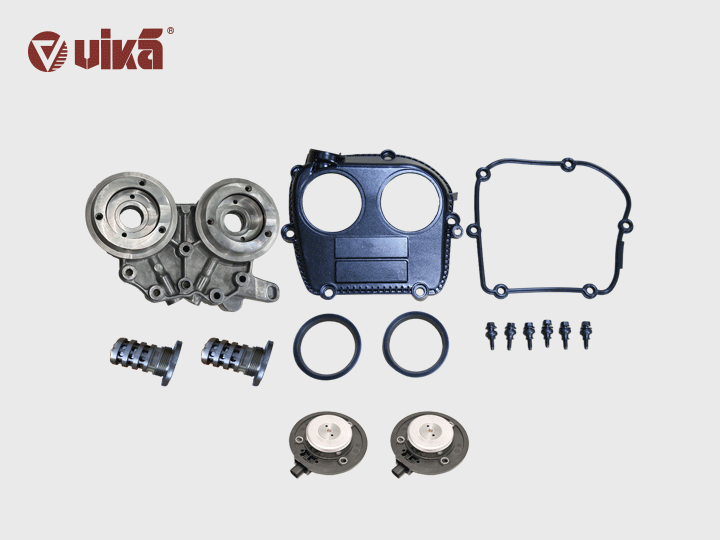

vika EA888 Camshaft Bridge Kit: Upgraded Aluminum, Zero Cascading Failures

In response to the design flaws of the EA888 Gen3 engine, vika has launched the EA888 Camshaft Bridge Kit. Moving beyond the passive, piecemeal replacement of individual components, this kit enables the simultaneous overhaul of the entire assembly. It thoroughly resolves the three common issues: oil leakage, abnormal noise, and VVT faults. It is the preferred parts solution for repair shops performing complete maintenance.

1. Timing chain cover: ADC12 aluminum alloy is used in place of the original easily deformable plastic part.

Material upgrade:

The original aging-prone plastic material has been fully replaced with high-strength ADC12 die-cast aluminum alloy. It fundamentally solves the common physical creep and deformation of plastic components under prolonged high temperatures, thereby completely eliminating the risk of oil leakage.

Surface electrophoretic process

The timing chain cover surface is treated with electrophoresis, which effectively prevents aluminum oxidation and corrosion even under the most harsh engine compartment conditions. This ensures excellent long-term sealing performance.

2. vika ADC12 Camshaft Bridge: stabilizes camshaft end play and eliminates play-induced abnormal noise.

Stable dimensions without deformation: Made of high-performance ADC12 die-cast aluminum alloy, it offers excellent structural rigidity, high-temperature resistance, and dimensional stability. Even under high-speed engine operation, the bridge will not deform or cause pressure loss.

Accurate limiting and support: Manufactured to OE-grade high precision, it supports and limits the camshaft, controlling axial and radial play within microns. This not only ensures stable oil pressure and precise timing phase, but also completely eliminates the "rattling" noise during cold starts and prevents pressure leakage.

3. Variable valve timing control valve (OCV): millisecond-level response

The valve core features exquisite craftsmanship, high wear resistance, and extremely rapid response. It can precisely control the flow direction and pressure of the engine oil, and ensures that the engine can adjust the camshaft phase in real time and accurately under all operating conditions.

4. VVT Solenoid: durable and free from jamming

The internal coil and housing are both made of industrial-grade materials resistant to high-temperature aging, offering excellent vibration resistance. The valve core moves smoothly, resists sticking during long-term frequent operation, and has a greatly extended service life.

Compatibility information of vika EA888 Camshaft Bridge Kit

Tantivy Nr.: K11112501, K11112601

Applicable models: EA888 GEN3 1.8T 2.0T engine
