The DQ200 seven-speed dual-clutch transmission is one of the most widely used automatic transmissions under the Volkswagen Group, covering millions of vehicles of Volkswagen, Audi, Skoda, and SEAT. However, as mileage increases, issues such as clutch wear,launch shudder, and jerky shifting have gradually become common pain points for vehicle owners.

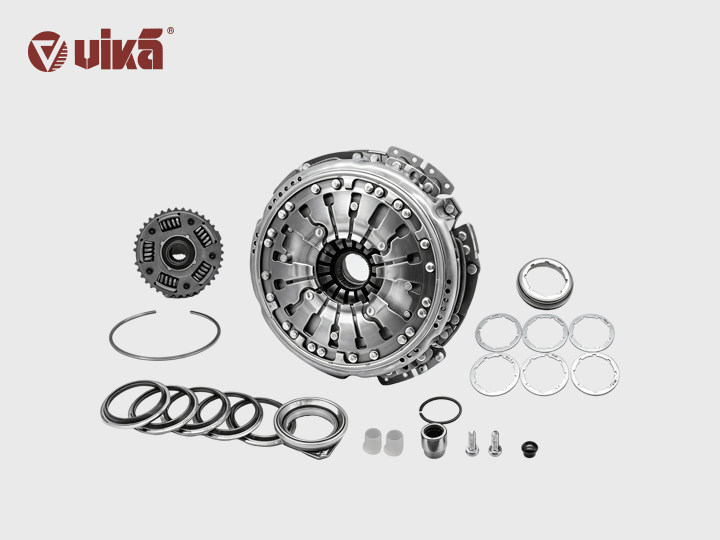

The vika DQ200 dual-clutch 12-piece kit has been upgraded with a lean configuration based on real-world maintenance scenarios. It aims to restore the transmission's factory-level performance, durability, and driving comfort.

vika DQ200 dual-clutch precisely meets the requirements of real-world repair scenarios

According to long-term feedback from global aftermarket repair shops, the causes of clutch failures mainly include driven plate wear, pressure plate slipping, and release bearing oil leakage or damage. The K1 and K2 release forks are typically high-strength cast or stamped parts with a very robust structure, and are highly unlikely to fail during the vehicle's entire service life. Therefore, the original forks can be directly reused.

The vika DQ200 dual-clutch 12-piece kit comprises the clutch body, release bearing, and all key core components, but Excludes the highly durable fork assembly.

Core technology upgrade: achieving Tier 1 performance

1. High-performance friction plates in line with OE standards

OEM-level anti-vibration capability (NVH Optimization): An exclusive G5 process is adopted, and special calibration is performed for the dynamic operating conditions of dry dual-clutch transmissions. These measures eliminate jerking and shaking during vehicle startup and gear shifting.

High temperature resistance and better durability (with lifespan extended by over 35%): The friction lining can withstand temperatures up to 360°C, and has a burst strength corresponding to 12,500 rpm. Even under extreme high-temperature operating conditions, its friction coefficient remains stable with no degradation. Its actual service life is 35% longer than conventional aftermarket friction linings.

Global environmental compliance: Containing 0% asbestos, 0% lead, and 0% traditional ceramic/spinning fibers, it generates limited dust and no odor. All of its materials comply with EU environmental regulations, making it suitable for global OEM and aftermarket applications.

2. Pressure plates made of QT500 ductile cast iron

Pressure plates from ordinary aftermarket brands are mostly made of HT250 gray cast iron, which has low tensile strength, is brittle, and prone to cracking. In contrast, all vika products use high-end QT500 ductile cast iron.

High strength with balanced ductility: Tensile strength ≥ 500 MPa; elongation ≥ 7%. The highly compact spheroidal graphite structure provides excellent resistance to fatigue under alternating stresses and impact. Therefore, it can effectively prevent cracking resulting from frequent shocks of clutch engagement.

High thermal stability and warp resistance: Highly resistant to thermal deformation during sustained high-load operation, it ensures that the clutch engagement surface remains consistently flat. This completely eliminates slippage and shudder caused by heat-induced deformation over time.

Excellent shock absorption: Ductile cast iron has superior vibration damping properties, resulting in low operational noise and better vibration suppression. It is ideal for mid-to-high-end passenger vehicles with dual-clutch transmissions and high torque.

3. OE-grade diaphragm spring

By using high-quality 50CrVA spring steel combined with an integrated continuous heat treatment process, the product has successfully passed alternating load fatigue tests of one million cycles (≥1,000,000 operation cycles). It exhibits no stress relaxation under high-temperature conditions and no loss of clamping force during long-term use, ensuring complete clutch disengagement and reliable engagement.

Quality control upgrade: the ultimate guarantee of zero comeback rate

Fully automatic pressure plate flatness inspection: The flatness of all pressure plates are inspected to eliminate any slight warping, thus ensuring smooth clutch engagement without slipping or shuddering.

Automated free gap detection: Data is collected automatically from multiple points to allow accurate calculation of gap differences and averages. This process significantly improves gap measurement accuracy.

Professional preliminary break-in process: OEM specifications are followed strictly for the break-in treatment, thereby effectively reducing the initial break-in mileage after a clutch replacement and significantly improving the initial gear-shifting feel.

Factory free clearance laser marking: Factory-set free clearance value is marked with laser. Mechanics can directly match the value against the shim selection table to pick the correct shim. This saves time and effort and ensures extremely high precision during the installation matching process.

Assembly dynamic balance testing: Vibration and abnormal noise of the assembly during high-speed rotation have been eliminated. Consequently, the product can adapt to severe operating conditions with high rotational speed and high torque.

Authoritative bench testing ensures high quality

All vika DQ200 dual-clutch products have passed rigorous bench tests in a CNAS-accredited national laboratory, covering the following tests:

High-speed durability test

Torsional durability test

Axial compression durability test

Static durability test

Diaphragm spring thermal fade tes

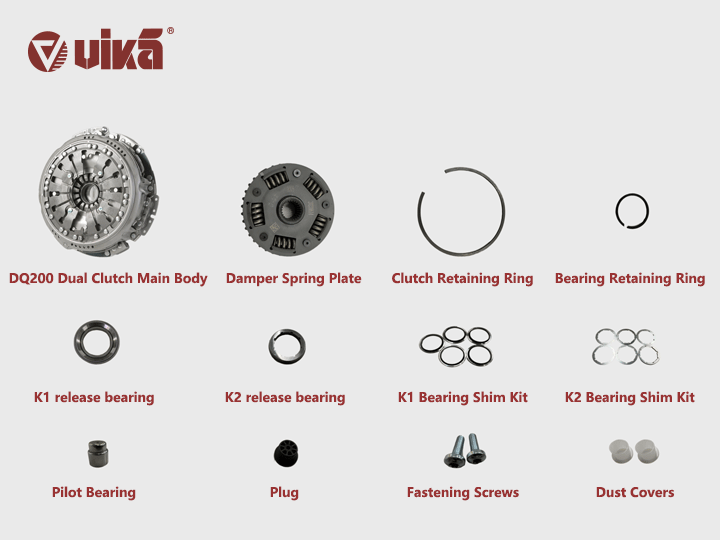

vika DQ200 dual-clutch 12-piece kit: One-stop solution for overhaul needs of the Volkswagen 7-speed DSG transmission

Core components: DQ200 dual-clutch body, damping spring disk, K1 release bearing, and K2 release bearing.

Professional repair kit components: clutch retaining ring, bearing retaining ring, pilot bearing, K1/K2 bearing shim set, plug, dust cover, and fastening screw.

Compatibility information of vika DQ200 dual-clutch

Applicable models: Lavida / Sagitar / Bora / Golf / Touran / POLO

vika DQ200 dual-clutch 12-piece kit is rooted in real-world repair scenarios. It uses OE-grade materials, achieves Tier 1-level performance, and is CNAS-certified. It offers repair shops and end customers a highly reliable, cost-effective answer to dual-clutch repairs, eliminating concerns about rework.
