The Mercedes-Benz M264 engine (1.5L/2.0L) is widely used in key models such as the C-Class, E-Class, and GLC. With over 3.5 million units in service worldwide, it represents a significant aftermarket for repair and maintenance.

Based on automotive aftermarket service data, vehicles powered by the M264 engine are prone to coolant pipe failures due to material aging after 7-8 years of use or 80,000-100,000 km of operation.

This article provides an in-depth analysis of the failure mechanisms of M264 coolant pipes. It explains why the three-piece coolant pipe kit has become the industry standard replacement solution, and demonstrates how the vika M264 coolant pipe kit effectively eliminates the risk of coolant leaks with a single replacement.

Typical symptoms of M264 coolant pipe failures

When the M264 cooling system develops a failure, the following typical symptoms may appear:

Coolant leakage: Coolant leaks from the engine compartment and coolant residue is visible on the ground.

Illumination of engine fault indicator: This is triggered by thermal management system abnormalities (such as excessive coolant temperature or fluctuating cooling system pressure), causing the ECU to store a fault code.

Root cause analysis of M264 coolant pipe failures

The root cause of coolant pipe leakage in the M264 engine lies in material degradation resulting from prolonged thermal cycling:

Pipe body cracking: Repeated thermal expansion and contraction causes the coolant pipes to crack, particularly in phenolic resin (Bakelite) components, which tend to become brittle and prone to fracture as they age.

Connector aging: Plastic connectors become brittle after prolonged exposure to high engine compartment temperatures and coolant additives, leading to cracking at stress concentration zones.

Seal ring failure: Exposure to sustained high temperatures causes the seal rings and gaskets to degrade over time, resulting in loss of elasticity and permanent deformation, ultimately leading to seal failure.

Why are repair shops all recommending "three-piece kits"?

In real-world repair scenarios, removing the intake manifold and associated components is labor-intensive and costly. Consequently, repair shops and vehicle owners are highly reluctant to perform repeated repairs – fixing one leak today, only for another pipe to fail shortly after.

Market data has consistently shown that the three most frequently failing coolant pipes on the M264 engine are often replaced simultaneously in the aftermarket. To resolve this common user concern, vika offers a three-piece kit designed to match actual replacement needs, effectively eliminating the risk of coolant leaks.

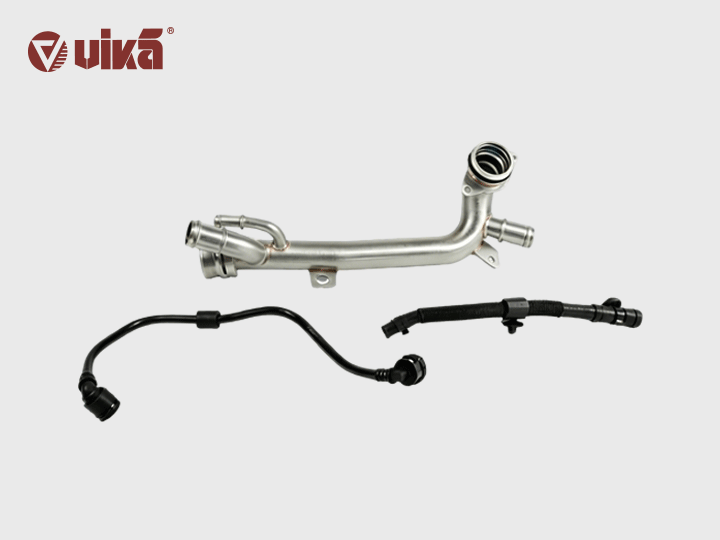

vika M264 Coolant Pipe Kit – a complete upgrade solution

To address the common coolant pipe leakage issue on the Mercedes-Benz M264 engine, vika offers the M264 Coolant Pipe Kit – a complete set of the three most failure-prone hoses, eliminating the need for sourcing individual parts and providing a comprehensive solution to the coolant leak problem of original products.

1. Bakelite pipe upgraded to 304 stainless steel (pressure resistance more than doubled)

The original Bakelite coolant pipe has a pressure resistance of about 0.8 MPa, while vika upgrades it to 304 stainless steel, boosting the pressure resistance to 1.8 MPa, representing a more than twofold improvement.
This fundamentally eliminates the risk of pipe rupture resulting from overpressure conditions

2. Made from selected PA12 nylon (with excellent flexibility and lightweight performance)

The pipe is made of PA12 nylon, which features excellent flexibility and lightweight performance, and can withstand temperatures up to 120°C, making it perfectly suited for the demanding thermal environment of the engine compartment.

3. EPDM sealing material (long-lasting high-temperature resistance)

Made of EPDM with a 32% rubber content, the seal offers excellent flexibility and long-term thermal resistance (up to 120°C), effectively preventing aging-related failures.

Compatibility information of vika M264 Coolant Pipe Kit

Compatible engine models:

1.5L(264915)/2.0L(264920)

Compatible vehicle models:

CLS C257 18-23/E-Class A238 16-23/E-Class C238 16-23/E-Class L V213 16-23/E-Class S213 16-23/E-Class W213 16-23/E-Class X213 16-23/GLC C253 15-22/GLC L V253 15-22/GLC X253 15-22

The vika M264 Coolant Pipe Kit addresses the leak problem at its root. With one complete kit including all three vulnerable pipes, it permanently eliminates the risk of coolant leaks on the M264 engine.
