The car window regulator is a core electromechanical device that ensures smooth, reliable window operation. It works by using an electric motor to drive a pulley, which actuates a high-strength steel cable and glass channel in a vertical motion, thus effectively converting the motor's rotational force into the linear movement that raises and lowers the window.

As a popular model with a market fleet of about 600,000 units, the Volkswagen Lavida (2013–2017) is prone to window regulator failures. Original equipment parts generally become more prone to failure after five years of service or around 100,000 kilometers.

Drawing on expertise in professional auto parts manufacturing and repair, this article delivers an in-depth analysis of the root causes behind Lavida window regulator failures, and explains how DPA systematically eliminates the original design shortcomings through comprehensive structural refinement and quality enhancements.

Typical failure symptoms:

• In normal operation, window regulator failures generally fall into the following three common categories:

• Sluggish up/down movement: The window glass fails to move smoothly, with noticeable jerking throughout the entire range of motion.

• Abnormal noise during up/down movement: Unexplained noises occur when the window is raised or lowered.

• Failed up/down movement: The window does not move when the switch is activated.

What causes the high failure rate of original equipment window regulators?

• Understanding the root causes behind these failure symptoms is the key to selecting more effective, targeted solutions. Window regulator failures are typically attributed to the following factors:

• Cable aging: After extended use, the steel cable gradually stretches and frays, resulting in sluggish window operation.

• Water ingress: Over time, the window seals deteriorate and lose their sealing effectiveness, allowing rainwater to seep in and wash over the regulator, which leads to component corrosion and reduced lubrication.

• Poor-quality parts: Low-grade window regulator rails lack installation precision and are susceptible to deformation under normal use, leading to sticking and abnormal noise.

• Wear of cable drum and guide wheel: Excessive wear on the cable drum and guide wheel can impair regulator performance and lead to failure.

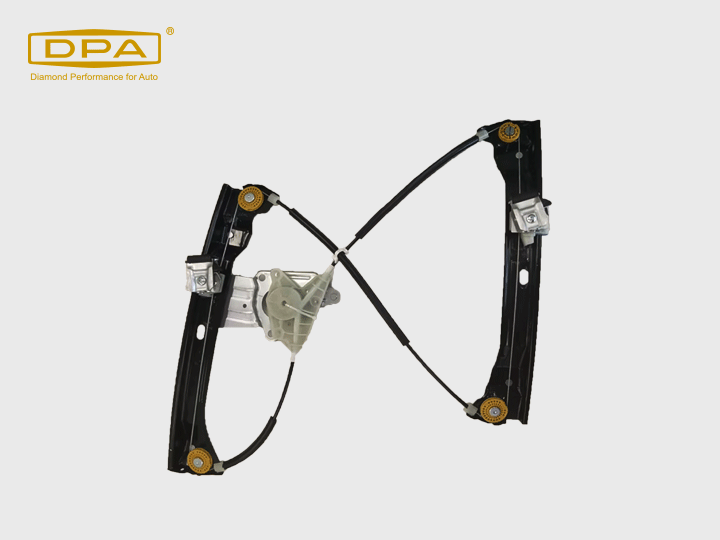

DPA Lavida window regulator: Five core technology upgrades

DPA has systematically eliminated the design flaws inherent in original equipment window regulators, delivering a product that guarantees 30,000 reliable lift cycles. Here are the five key differences that set the DPA product apart from OE products:

1. Increased cable drum diameter: The steel cable durability is extended by up to 300%.

DPA enlarges the cable drum diameter to 41 mm, which creates a more gradual bending radius for the steel cable. This design effectively reduces bending stress and extends cable fatigue life by more than three times.

The cable drum of OE products measures only 31 mm in diameter, resulting in a tighter bending radius for the steel cable and a shorter fatigue life.

2. An oil reservoir is incorporated to ensure consistent lubrication and smooth operation.

The DPA product features an added oil reservoir design that holds excess lubricating grease, continuously coating the contact surfaces between the fixed pin and the cable drum to ensure consistently smooth window operation.

Without this oil reservoir design, OE products are prone to grease loss, resulting in direct contact noise.

3. The guide rail water baffle resists moisture ingress.

DPA incorporates an extended water baffle design that effectively blocks rainwater seeping through the window gap from washing over the cable drum, preventing it from mixing with the lubricating grease.

OE products lack a water baffle, leaving the cable drum and guide rail exposed to rainwater ingress. When water mixes with the lubricating grease, it becomes diluted and emulsified, stripping the cable drum and guide rail of proper lubrication and accelerating wear.

4. The one-piece guide rail ensures stable and deformation-free performance.

The DPA product employs a one-piece stamped guide rail construction, in which all mounting points and holes are formed in a single operation. This design guarantees mounting precision, uniform stress distribution, and robust resistance to both vibration and impact loads, effectively preventing structural deformation.

OE products employ a split design in which the mounting points are riveted to the guide rail. This introduces assembly tolerances that, over time, allow the riveted joints to loosen or shift under load, resulting in misaligned mounting holes.

5. POM cable drum material: self-lubricating and wear-resistant

The DPA product uses POM (polyoxymethylene) material, which offers excellent self-lubricating properties and a low coefficient of friction, ensuring high resistance to plastic deformation even under prolonged load.

OE products use nylon PA6, which tends to generate abnormal noise under dry friction and lacks self-lubricating properties. Under sustained loading, the material is also prone to creep, potentially leading to plastic deformation of the drum over time.

Applicable vehicle models and replacement recommendations

Applicable vehicle models: Volkswagen Lavida (2013–2017)

Replacement recommendation: If your Lavida exhibits symptoms such as sluggish operation, abnormal noise, or complete lifting failure, prompt replacement of the window regulator assembly is strongly advised.

By choosing the DPA Lavida window regulator that features five core technology upgrades, you can say goodbye to frequent repairs and restore your windows to a smooth, like-new lifting experience.
