Does your vehicle exhibit a humming noise from the chassis at medium-to-high speeds, sometimes accompanied by noticeable resonance and whole-body vibration? This is typically caused by severe wear in critical drivetrain damping components, specifically the driveshaft support bracket and the driveshaft coupling disc.

As a critical power transmission component linking the engine to the drive wheels, the driveshaft's support and damping structures are highly susceptible to degradation under prolonged high-load operation. Selecting a repair solution that balances durability with adaptability to varying driving conditions is essential to eliminating potential safety hazards and restoring factory-level ride comfort.

Common driveshaft failures and in-depth cause analysis

Drivetrain failures typically manifest as progressive abnormal vibration and noise. Chassis maintenance data indicates that the most common failure points are concentrated in two critical areas: the driveshaft support bracket and the driveshaft coupling disc:

1. Looseness, abnormal noise, and vibration of the driveshaft support bracket

Root cause: Severe aging and sagging of the center rubber bushing, or abnormal clearance in the internal bearing.

Failure impact: At medium-to-high speeds, failure of the driveshaft to maintain proper center-axis alignment can lead to pronounced body resonance and a low-frequency "humming" noise from the chassis. Prolonged operation under such conditions may further accelerate wear of associated components.

2. Abnormal noise and resonance vibration of the coupling disc

Root cause: Prolonged exposure to heat and high-torque stress causes the coupling disc rubber to crack and harden over time. Under heavy-load impacts or minor driveshaft eccentricity, the disc is additionally subjected to lateral tensile forces.

Failure impact: A decline in power transmission efficiency, accompanied by knocking noises and vehicle shudder under hard acceleration or during gear shifts.

When is it necessary to replace the driveshaft components?

Chassis rubber and bearing components are consumable parts, and their physical properties degrade significantly once they reach the end of their service life.

Service life of the driveshaft support bracket: 7-9 years / 120,000-170,000 km

Service life of the driveshaft coupling disc: 5-8 years / 100,000-160,000 km

Professional tip: When any one of these components reaches its replacement interval, it is advisable to replace all related parts as a complete set. Replacing a single component alone can lead to uneven load distribution between new and old parts, which may accelerate premature wear of the new part.

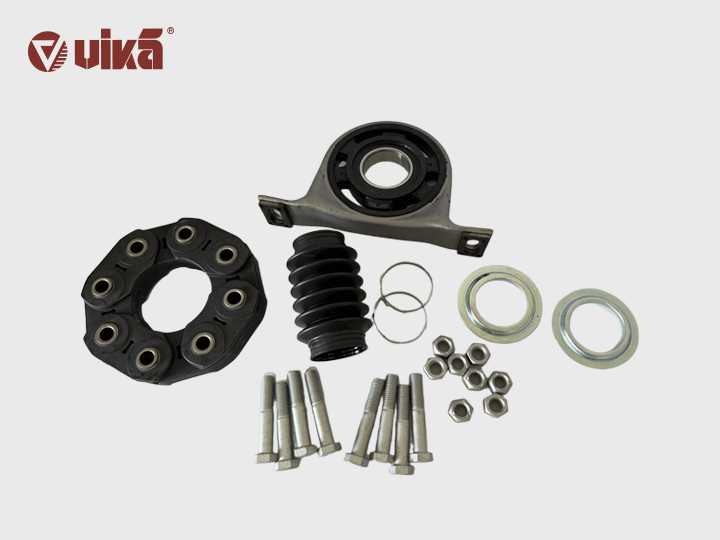

Why choose the vika Driveshaft Repair Kit?

The vika Driveshaft Repair Kit features comprehensive material and process upgrades that target the weak points of the OE design, delivering a one-time replacement solution that eliminates vibration and prevents future risks.

1. Strong support: vika driveshaft support bracket

Bracket assembly: Equipped with C&U highly sealed bearings, the kit offers 3-5 times the water and sediment resistance of standard bearings, significantly extending service life under extreme driving conditions.

Bracket rubber: High-quality natural rubber is used to offer excellent resistance to aging and compression set, effectively absorbing and dampening chassis resonance at the source while reducing secondary wear on the drivetrain.

2. Maximum torque rating: vika driveshaft coupling disc

Automated winding technology: The automated winding structure utilizes reinforced nylon thread, delivering a significant improvement in tensile strength.

High-strength iron core and high-quality natural rubber: The high-quality metal and rubber are integrally cast as a single unit, delivering resistance to high-temperature exposure and high-frequency heavy-load impacts.

4000 N·m torque capacity: With a maximum torque capacity of up to 4,000 N·m, it delivers stable and reliable performance even under hard acceleration and high-load operating conditions.

Low-temperature resistance down to -40°C: It maintains its elasticity and structural integrity even in extreme cold conditions down to -40°C, delivering efficient power transmission with no performance degradation.

Conclusion

Chassis vibration and abnormal noise not only compromise driving comfort but also serve as early warning signs of drivetrain damage. The vika Driveshaft Repair Kit, engineered with high torque capacity, extreme-cold stability, and long-lasting sealing performance, effectively eliminates the root cause of vibration in a single replacement and ensures driving safety.
