In the MLB Evo longitudinal engine platform, the air suspension compressor is the key component responsible for maintaining ride height and driving comfort. However, as vehicles reach 5–8 years of use or 80,000–150,000 kilometers on the odometer, compressor failure has become a common issue for owners of this platform.

Working principle of the air suspension compressor

The air suspension compressor compresses air through the reciprocating motion of a piston driven by an electric motor. The air is filtered and dried to become high-pressure air, which is then delivered to the four air springs via a distribution valve, thereby raising the vehicle body. Conversely, pressure is released through a solenoid valve to lower the vehicle body.

Fault warning: dashboard alerts and fault symptoms

When the air pump suffers performance degradation or damage, warnings will be displayed intuitively on the dashboard:

Red critical failure warning

Message: "Chassis system failure" or "Suspension system failure".

Symptoms: Suspension height locking, prohibition of high-speed driving, and inability to switch to off-road mode.

Yellow minor/intermittent failure warning

Message: "Restricted height adjustment" or "System anomaly".

Symptoms: Noticeable drop of the vehicle rear, slow response to height adjustments, and frequent compressor operation with loud abnormal noises.

In-depth analysis of three core fault causes

Piston ring wear and cylinder scoring: This is often caused by pump overload resulting from air spring leakage, or from water ingress and corrosion due to dryer failure. Symptoms include insufficient pressure (<6 bar) and severe metallic friction noise.

Motor burnout: The relay contacts are eroded or the heat dissipation fails, causing the coil to overheat and burn out. The symptoms include complete shutdown of the compressor and a blown fuse.

Dryer failure: The internal desiccant (molecular sieve) becomes saturated after 5–8 years of use, and can no longer effectively remove moisture. This leads to ice and pipe blockage during winter, which accelerates pump wear.

Improved solution of vika STO vs. OE solution

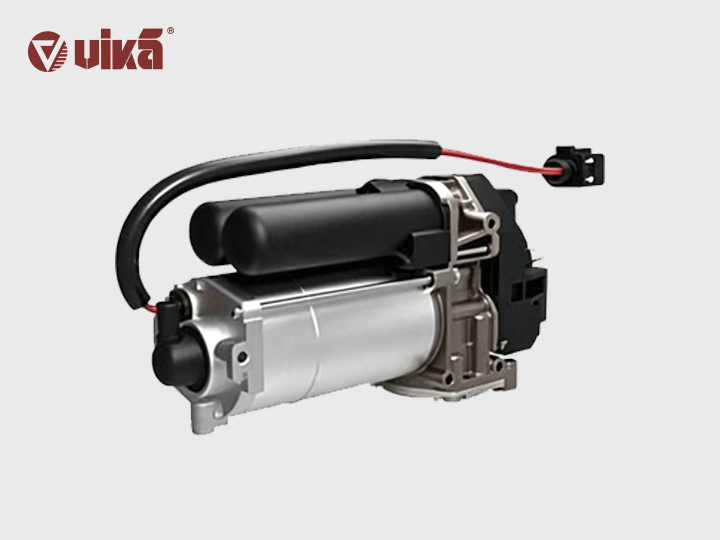

The vika STO compressor features multiple technical upgrades to address the original factory design flaws, achieving superior durability and performance.

Technical and structural in-depth comparison:

Comparison of measured performance data:

According to the test data, the vika STO compressor outperforms the OE part in several key indicators.

Boost efficiency: The average boost time of the vika product is 130 seconds, which is 9% shorter than that of the OE part.

Energy consumption control: With an average maximum current of only 30A (vs. 33A for the OE part), energy consumption is reduced.

Ultra-long lifespan: It has a life span as long as 700 hours, far exceeding the OE part's 500 hours. It also features extremely low wear degradation.

vika STO Air Suspension Air Compressor Compatibility Information

The vika STO compressor offers excellent versatility and is perfectly compatible with a wide range of high-end vehicles based on the MLB Evo platform:

Aluminum drying tank:

Ref Nr. : 4M0616005F/G/H/J

Applicable models: AQ7 16-25/AQ8 19-25/RSQ8 20-25/TOUA 18-25

Ref Nr. : 80A616005E/F

Applicable models: AQ5 17-25

Plastic drying tank:

Ref Nr. : 4N0616005C/D:

Applicable models: A8 18-25/A8Q 18-25

Ref Nr. : 4K0616005B/C:

Applicable models: A6 19-25/A6Q 19-25/A7 19-25/RS6 20-25/RS7 20-25
